0.75噸DLEK環鏈電動葫蘆掛鉤式
0.75噸DLEK環鏈電動葫蘆掛鉤式產品參數：
|
MODEL型號 |
DLEK 0.75-01 |
||
|
DLEK 1/DLEK2 |
DLEK3 |
DLEK4 |
|
|
Maximum load最大載荷(≤6m/h) |
0.8t |
||
|
Rated load(Ton)額定載荷(≤6m/h) |
0.75t |
||
|
Lifting speed(m/min)起升速度 |
單速6.5 |
雙速2/6.5 |
變頻1.5~6.5 |
|
Motor Power(kw)電機功率 |
單速0.75 |
雙速0.26/0.75 |
變頻0.75 |
|
Rotation speed(r/min)轉速 |
單速1440 |
雙速430/1440 |
變頻200~1440 |
|
Motor insulation class電機絕緣等級 |
F |
||
|
Frequency(Hz)頻率 |
50 |
||
|
Power Supply工作電壓 |
Ac 380V L1 L2 L3〧 |
||
|
Control Volatage控制電壓 |
AC36V |
||
|
NO.of Load Chain鏈條回數 |
1 |
||
|
Spec.of Load Chain鏈條規格 |
6.3x19 |
||
|
Working level工作級別 |
M5 |
||
|
|

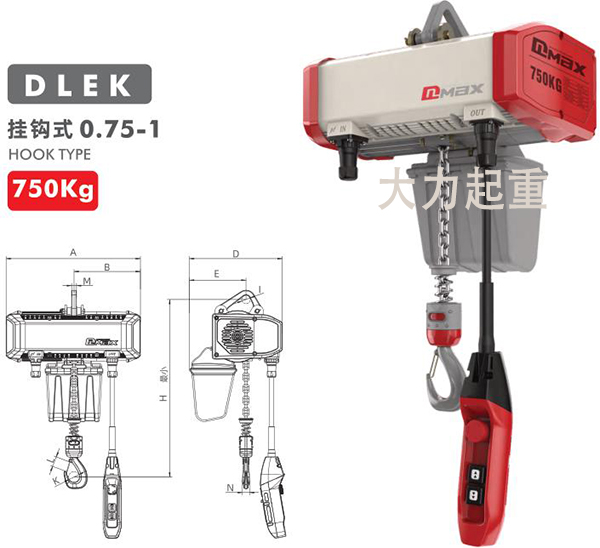

長度（mm） |
|
H |
410 |
|
A |
440 |
|
B |
218 |
|
D |
305 |
|
E |
186 |
|
I |
28 |
|
M |
16 |
|
N |
20 |
|
K |
35 |
|
L |
31 |
